Customer’s size available! for your favorite size, pls send us by  e-mail: info@worldtape.com |
|
| Duct wrap in HVAC system |
|
 |
| Descript ion |
Art. No. |
Foil details |
Total thichness |

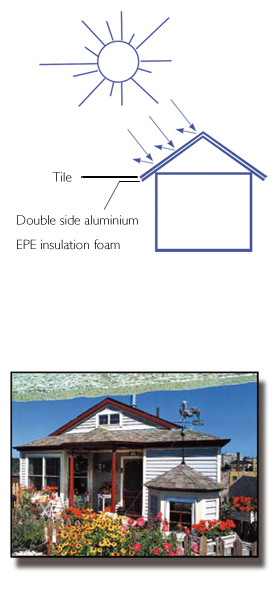

 WORLD® Double side aluminium
 EPE insulation foam
With double side aluminium foil EPE
insulation foam apply very good usage on
building & breed.
 1.noise insulation
 2.heat preservation & insulation
 3. roof of hennery building heat insulation.
4. aging resistant. |
400001
400002
|
7u/epe foam |
3mm
4mm
|
WORLD® Laminated insulating
facing
Good aluminium foil reinforced by all kind
of materials, apply very good duct wrap in
HVAC systems and pipe insualtion. |
40011
40012
40013
40014
40015 |
foil: 7u/3-way scrim
foil: 7u/3-way scrim
foil: 7u/2-way scrim
foil: 7u/3-way scrim
foil: 7u/3-way scrim |
8 x 12/kraft: 60gsm
8 x 12/pe/kaft: 50gsm
12.5 x 12.5/pe/kaft: 50gsm
12.5 x 12.5/pe/kaft: 60gsm
12.5 x 12.5/pe/kaft: 80gsm |
| | | | |
 |
| Technical specification--Laminated insulating facing |
| Product Construction |
Features |
| 7µm Aluminum foil/PE/8*12/100cm2，Three-way fiberglass mesh/60gKraft/PE/7µm Aluminum foil |
Light weight, three-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties. |
| 7µm Aluminum foil/PE/Space 12.5*12.5mm, Two-way fiberglass mesh/60gKraft/PE/7µm Aluminum foil |
Light weight, two-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties. |
| 7µm Aluminum foil/PE//8*12/100cm2, Three-way fiberglass mesh/110gKraft/PE/7µm Aluminum foil |
Medium weight, three-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties. |
| 7µm Aluminum foil/Retardant plastic/8*12/100cm2, Three-way fiberglass mesh/60gKraft/Retardant plastic/7µm Aluminum foil |
Light weight, three-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties, as well as some flame retardance. |
| 7µm Aluminum foil/Retardant plastic/Space 12.5*12.5mm, Two-way fiberglass mesh/60gKraft/Retardant plastic7µmAluminum foil |
Light weight, two-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties, as well as some flame retardance. |
| 7µm Aluminum foil/PE/8*12/100cm2, Three-way fiberglass mesh/60gKraft/PE/12µm Aluminized film |
Light weight, three-way fiberglass mesh, double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties. |
Above data, base on standard products, for other sizes, pls send  e-mail : info@worldtape.com |
|
