   Customer’s size available! for your favorite size, pls send us by  e-mail: info@worldtape.com
For high voltage & high temperature insulation
Descript ion Art. No. Size Packing


WORLD® Silicone self fusing tape
with high quality silicone rubber ,excellent
comprehensive performance and good technical
and economic effects, widely used in various
fields of aviation, aerospace, atomic energy,
electrical appliances, electronics, meters,
automobiles, machinery, metallurgy,
chemical engineering, medical and health,
and daily life.
1. volume resistivity : at least 1 x 1014Ω·cm
2. temperature resistance range -50℃~+260℃;
  higher temperature resistance 350℃; thermal
  stability 180℃.
3. Sealing and moisture-proof performance:
  water vapor will not penetrate through
  the silicone belt. It has excellent moisture-proof
  performance and achieves effective insulation.
4. Chemical properties: anti-oxidation, anti-ozone
  effect; anti-ultraviolet effect, good weather
  resistance.
5. Mechanical properties: excellent shock
   absorptionand heat insulation; good
  resistance to mechanicalimpact;
  elongation rate reaches 400%-500%.
6. Convenient maintenance: the surface is not
  sticky, the surface does not stick to the
  touch, and does not adhere to the touched
  surface.
7. Easy to use: self-melting tape wrapped around
  one layer can play a good insulation role,
  reducing labor and cost.

390001



390002

390003

390004

390005

0.5mm×25mm×1M



0.5mm×25mm×1.5M

0.5mm×25mm×3M

0.5mm×50mm×3M

0.5mm×25mm×5M

Each pc with zip-bag or
with color printed box

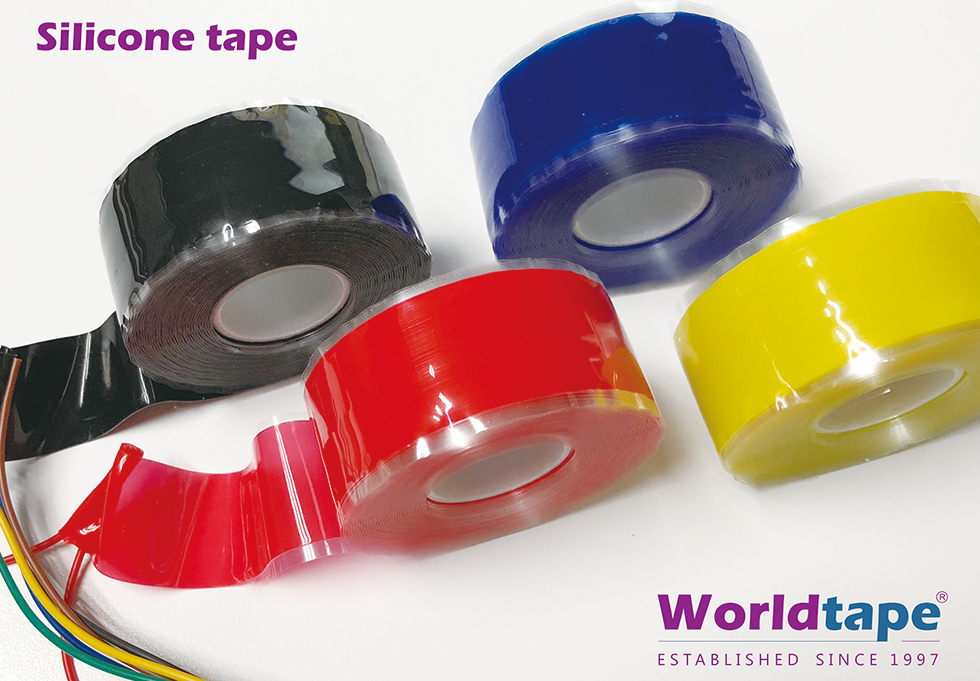

Silicone self fusing tape
Technical specification
 Material  SILICONE RUBBER
 Glue  Self Fusing
 Total Thickness  0.5MM
 Material thickness  0.5MM
 Glue thickness  /
 Release film  PE Release Film
TEST ITEM UNIT RESULTS TEST METHOD
 Tensile strength  >2.5 Mpa  3.2  GB/T1040
 Ultimate elongation  >500%  660  GB/T1040
 Thermal aging:100℃/168h  No crazing, distortionobvious air bubble  Pass GB/T7141
 Self-adhesiveness (room temperature, in water, 24h)  Not releasing, No water between layers  Pass Pass
 Dielectric strength  >30 KV/mm  35 GB/T1408
 Volume resistivity  >1×10^14Ω·cm 4.8×10^14 GB/T1410
 Dielectric loss tangent  <0.035 0.018 GB/T3048.11
 Dielectric constant <3.5  3.1 GB/T1409
 Anti-tracking voltage  >3.5 KV  3.6  GB/T6553
 Water resistant Yes Yes PSTC-34
 UV Resistant Yes  Yes
 Fire resistant(Class) Class  V-0 UL94
 Moisture resistant  Yes Yes ASTM D1000
 Shelf life(Month)  ≥12  ≥24  At approx. +20°C and 50% humidity
Above data, base on standard products, for other sizes, pls send  e-mail : info@worldtape.com

ELECTRICAL insulation >> Silicone tape
