PVC insulating tape-ELECTRICAL insulation-World tape co., ltd. ,

Customer’s size available! for your favorite size, pls send us by

For home, workshop & automobile

Description	Art. No.	Size	Color	Packing

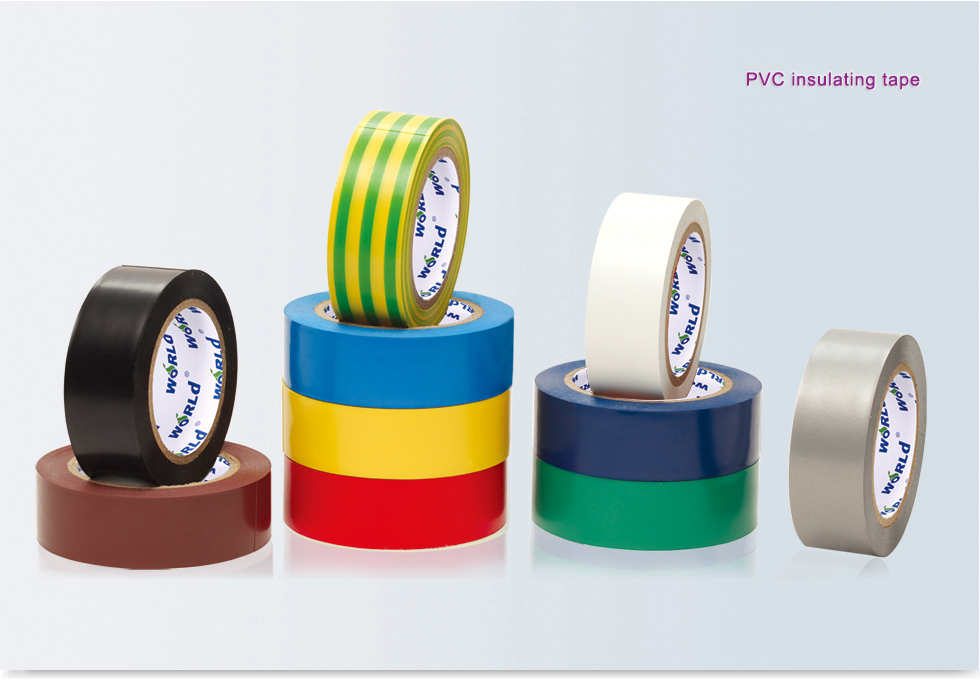

WORLD® PVC insulating tape The reliable and protective adhesive tape for insulating, wrapping and binding electrical wires and cables. 1. for insulating and binding electric cables 2. protect cable coverings 3. flame- resistant & low harmful chemical substance. 4. easy to wrap and mould around uneven surfaces 5. used under 600V and 80℃. 6. with standard EN 60454-3-1 7. material: soft PVC film with matte/glossy finish. 8. adhesive: natural rubber glue	290001 290002 290003 290004 290005 290006 290007 290008	0.13mm x 15mm x 10m 0.13mm x 19mm x 10m 0.13mm x 19mm x 20m 0.13mm x 19mm x 33m 0.15mm x 19mm x 10m 0.15mm x 19mm x 20m 0.18mm x 19mm x 10m 0.18mm x 19mm x 20m	red yellow blue green black white grey brown yellow/green yellow/brown	each pc wrapped by cellophane paper with color lable10pcs shrink per set
WORLD® PVC wire harness tape Applicable for the automobile wire distribution very soft PVC film with best wrapping for the car cable. 1. flame -resistant. 2. high adhesive power for backing. 3. high elongation more than 250%. 4. material: very soft pvc film with matte finish. 5. adhesive: natural rubber glue.	290011 290012	0.11mm x 18mm x 10m 0.11mm x 18mm x 20m	black	each pc wrapped by cellophane paper with color lable10pcs shrink per set

Technical specification
Material	Soft PVC Film - Matte / Glossy finish
Glue	Natural rubber glue
Foil thickness	110Mic
Total thickness	130Mic
Release film	No
Release film thickness	/
PROPERTIES	UNIT	VALUE	TEST METHOD
180°C Peeling strength	N/10mm	1.8	EN60454-2,11
Adhesion to backing	N/10mm	1.5	EN60454-2,11
Tensile strength	N/10mm	20	EN60454-2,8
Elongation	%	200	EN60454-8
Electrolytic corrosion	Grade	A/B1.2	EN60454-2,7.6
Electrical strength-room temp.	KV/mm	75	EN60454-2,17
Electrical strength-humid cond.	KV/mm	70	EN60454-2,18
Water resistant	/	Yes	PSTC-34
UV Resistant	/	No
Fire resistant	Class	V-0	UL94
Moisture resistant	/	Yes	ASTM D1000
Application temperature	°C	5 ~ +40
Temperature resistance	°C	-5 ~ +80
Shelf life	Month	≥24	At approx. +20°C and 50% humidity
Above data, base on standard products, for other sizes, pls send e-mail : info@worldtape.com
