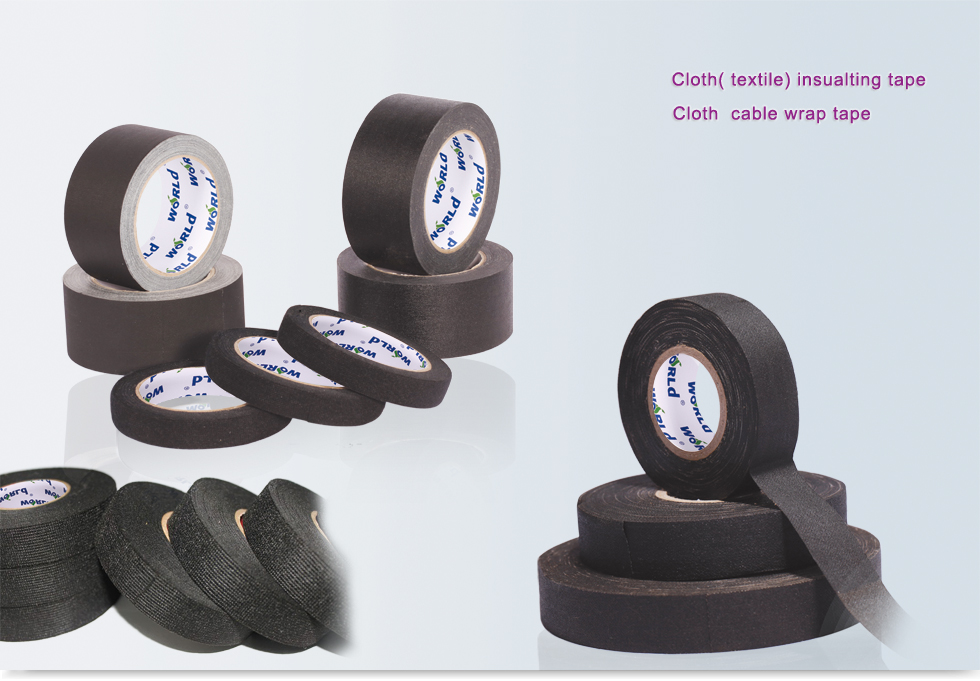

Cloth( textile) insualting tape-ELECTRICAL insulation-World tape co., ltd. ,

Customer’s size available! for your favorite size, pls send us by

For low valtage insulation
For car cable wrapping and insulation

Description	Art. No.	Materials	Size	Adhesive strength
WORLD® Cloth(textile) insulating tape With high quality rubber glue on the pure cotton cloth mesh, apply strong fixation after bandaging, safe and reliable. 1. insulative bandaging & fixation on joins of wire and cable under 380V, service temp.: -10℃~ 40℃. 2. easy to tear by hand. 3. no curling or deforming as cut. 4. no-corrosiveness to copper /aluminium. 5. self adhesive with double size glue.	150001 150002 150003 150004 150005	pure cotton pure cotton pure cotton pure cotton pure cotton	19mm x 5m 19mm x 7m 19mm x 10m 19mm x 15m 19mm x 30m	8N/25mm 8N/25mm 8N/25mm 8N/25mm 8N/25mm
WORLD® Cloth cable wrap tape With NON WOVEN FABRIC, coated with best rubber resin glue, apply very good wrapping and fixing for the car cable. 1. middle tensile strength. 2. no-corrosiveness to copper /aluminium. 3. easy to tear by hand. 4. high temperature resistant, service temperature up to 80℃.	150011 150012 150013	non woven fabric non woven fabric non woven fabric	19mm x 10m 19mm x 20m 19mm x 25m	16N/25mm 16N/25mm 16N/25mm

Technical specification-Cloth insulating tape
Material	Cloth Mesh
Material specification	Warp: 100% Polyester, Weft : 50% Polyester + Cotton
Glue	Double sided Natural Rubber Glue
Foil thickness	210Mic
Total thickness	390Mic
Release Release film	No
Release film thickness	/
PROPERTIES	TEST CONDITION		TEST RESULT	STANDARD
Voltage resistance	1000KV / 50HZ in 1 Minute		No disruptive	ASTM D4514
Adhesion properties	With standard loading, percentage of winded tape	Standard tape in 1-8month	≤ 50%	ASTM D4514
		Standard tape in 8-15month	≤ 50%	ASTM D4514
		Accelerated ageing tape( 70°C x 24H) in 1-8month	≤ 50%	ASTM D4514
		Accelerated ageing tape( 70°C x 24H) in 8-15month	≤ 50%	ASTM D4514
Corrosion to wire	Wrapped Wire in 100°C X 16H		No Corrosion

PROPERTIES	UNIT	VALUE
Application Voltage	V	380
Translucent point	PCS/0.02m2	≤ 5
UV Resistant	/	No
Fire resistant	/	No
Moisture resistant	/	No
Application temperature	°C	-10 ~ +40
Temperature resistance	°C	-20 ~ +80
Shelf life	Month	≥8	at approx. +20°C and 50% humidity
Above data, base on standard prodducts, for other sizes, pls send e-mail : info@worldtape.com

Technical specification-Cloth cable wrap tape
Material	No-wowen polyester cloth
Glue	Natural rubber based glue
Total thickness	300MIC
Release film	NO
Release film thickness	/

PROPERTIES	UNIT	VALUE	TEST METHOD
First adhesive (#11 Steel Ball)	CM	≤10	PSTC-6
Persistent strength	H.25mm	≥10	PSTC-7
180°C Peeling strength	N/25mm	6.5	PSTC-1
Adhesion to Backing	N/25mm	6	PSTC-1
Tensile strength	N/25mm	100	PSTC-31
Elongation	%	20	PSTC-31
Water resistant	/	Yes	PSTC-34
UV Resistant	/	No
Fire resistant	/	Yes
Moisture resistant	/	Yes	ASTM D1000
Application temperature	°C	-20 ~ +80
Temperature resistance	°C	-40 ~ +105
Shelf life	Month	≥24	At approx. +20°C and 50% humidity
Above data, base on standard products, for other sizes, pls send e-mail : info@worldtape.com
