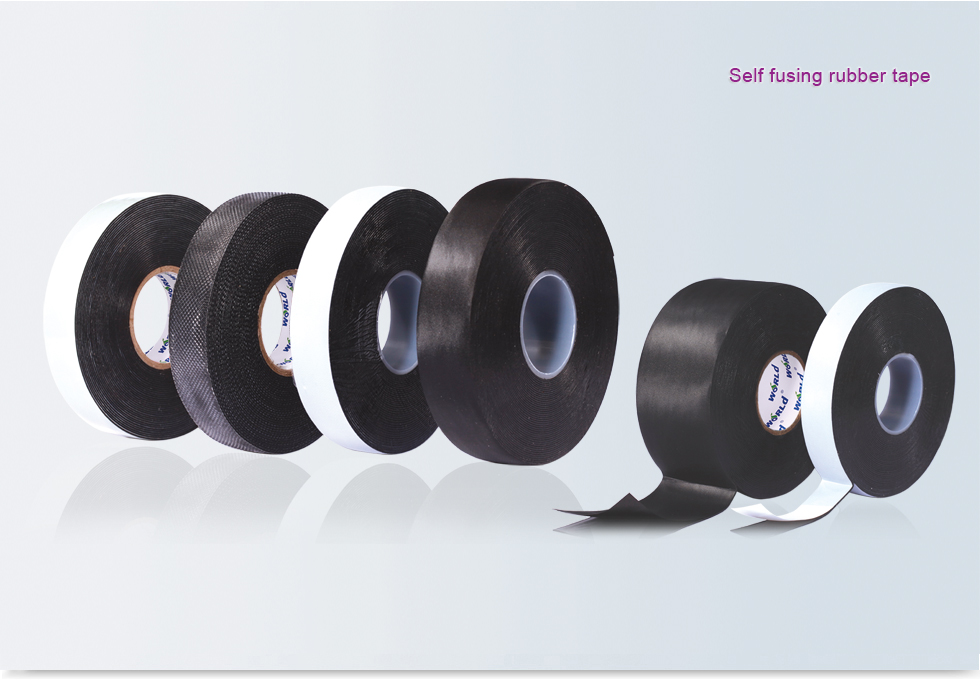

Self fusing rubber tape-ELECTRICAL insulation-World tape co., ltd. ,

Customer’s size available! for your favorite size, pls send us by

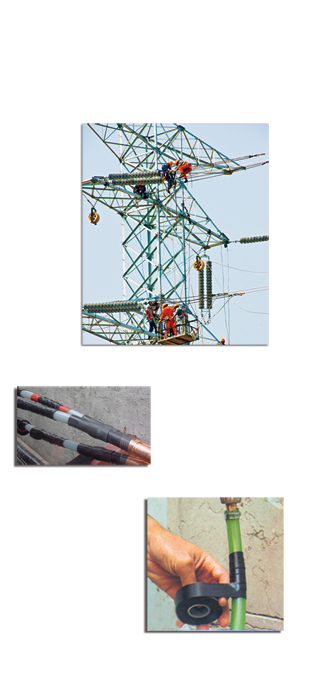

For high voltage insulation


Descript ion	Art. No.	Size	Packing
WORLD® Self fusing (amalgamating) rubber insulating tape with excellent high quality synthetic rubber apply very good insulation protective for high voltage (>= 20KV) wire & cable 1.forms a homogeneous rubber tube after application, without the need for heat or pressure. 2. water proof, can used on cable under water. 3. for permanent and temporary repairs. 4. high elongation(>= 1000%). 5. with standard ANSI/UL 510-1994	360001 360002 360003 360004 360005 360006 360007	0.5mm x 19mm x 5m 0.5mmx 25mm x 5m 0.5mm x 19mm x 9m 0.5mm x 25mm x 9m 0.75mm x 19mm x 9m 0.75mm x 25mm x 9m 0.75mm x 50mmx 9m	each pc shrink or with color box

Technical specification
Material	EPR (Ethylene propylene rubber)
Glue	No
Thickness	750Mic
Release film	PE Release Film
Release film thickness	80Mic
PROPERTIES	UNIT	VALUE	TEST METHOD
Tensile strength	N/25mm	3.5	PSTC-31
Elongation	%	1000	PSTC-31
Application temperature	°C	0 ~ +90
Temperature resistance	°C	-10 ~ +130
Resistant Cook the Poach	MΩ	2500
Voltage Resistant	MV/M	31.5
Breakdown Voltage	KV	69
Self Fusing	Conformity		ASTM- D-4388
Thermal Conductivity	Btu/hr•ft•°F	1208	ASTM D-1518
Ozone Resistance	Conformity		ASTM- D-4388
Water resistant	/	Yes	PSTC-34
UV Resistant	/	Yes
Fire resistant	Class	V-0	UL94
Moisture resistant	/	Yes	ASTM D1000
Shelf life	Month	≥24	At approx. +20°C and 50% humidity
Above data, base on standard products, for other sizes, pls send e-mail : info@worldtape.com
