Customer’s size available! for your favorite size, pls send us by  e-mail: info@worldtape.com |
|
 |
|

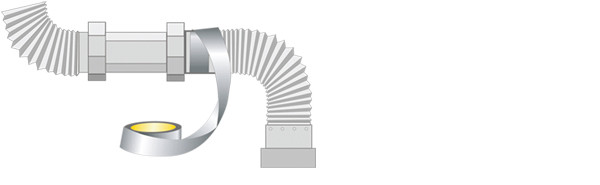

| For sealing joints and seams |
 |
| Descript ion |
Art. No. |
Foil thickness |
Application |
 WORLD® aluminium foil tape
With pure aluminium foil, coated with high
 quality solvent acrylic glue,apply wide
range of application in refrigeration,
 electronic industry.
 1. shield ,reflex heat.
 2. long duration, suitable for repairs.
3. easy to tear by hand.
4. low moisture vapor transmission
 5. service temperature range
from-30℃～+120℃ (-22℉～+248℉ |
100022 |
22u |
Utility grade foil tape,suitable for sealing
joints and seams of foil-faced
insulation materials |
| 100025 |
25u |
Economic grade foil tape,good for sealing
joints and seams of foil-faced insulation
materials |
| 100030 |
30u |
High grade foil tape,very good for sealing
joints and seams of foil-faced insulation
materials |
| 100040 |
40u |
High grade foil tape,excellent for sealing
joints and seams of foil-faced insulation
materials, good for refrigerator industry,
metal patching and sound dampening
applications. |
| 100050 |
50u |
High grade foil tape,excellent for sealing
joints and seams of FSK-faced insulation
materials, good for refrigerator industry,
metal patching and sound dampening
applications. |
|
|
|
| | |
| Technical specification |
| Material |
Aluminum Foil |
|
| Glue |
Solvent based Acrylic glue with Flame Retardant |
|
| Foil thickness |
30Mic |
|
| Total thickness |
60Mic |
|
| Release film |
White PE-coated Silicone Release Paper |
|
| Release film thickness |
90Mic |
|
|
| PROPERTIES |
UNIT |
VALUE |
TEST METHOD |
| First adhesive (#11 Steel Ball) |
CM |
≤10 |
PSTC-6 |
| Persistent strength |
H.25mm |
≥10 |
PSTC-7 |
| 180°C Peeling strength |
N/25mm |
20 |
PSTC-1 |
| Tensile strength |
N/25mm |
60 |
PSTC-31 |
| Elongation |
% |
10 |
PSTC-31 |
| Water resistant |
/ |
Yes |
PSTC-34 |
| UV Resistant |
/ |
No |
|
| Fire resistant |
Class |
V-0 |
UL94 |
| Moisture resistant |
/ |
Yes |
ASTM D1000 |
| Application temperature |
°C |
0 ~ +40 |
|
| Temperature resistance |
°C |
-10 ~ +120 |
|
| Shelf life |
Month |
≥24 |
At approx. +20°C and 50% humidity |
Above data, base on standard products, for other sizes, pls send  e-mail : info@worldtape.com |
|
