| For high voltage insulation |
|
 |
| Descript ion |
Art. No. |
Foil |
Application |

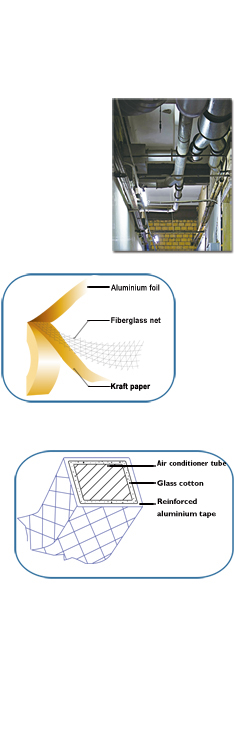

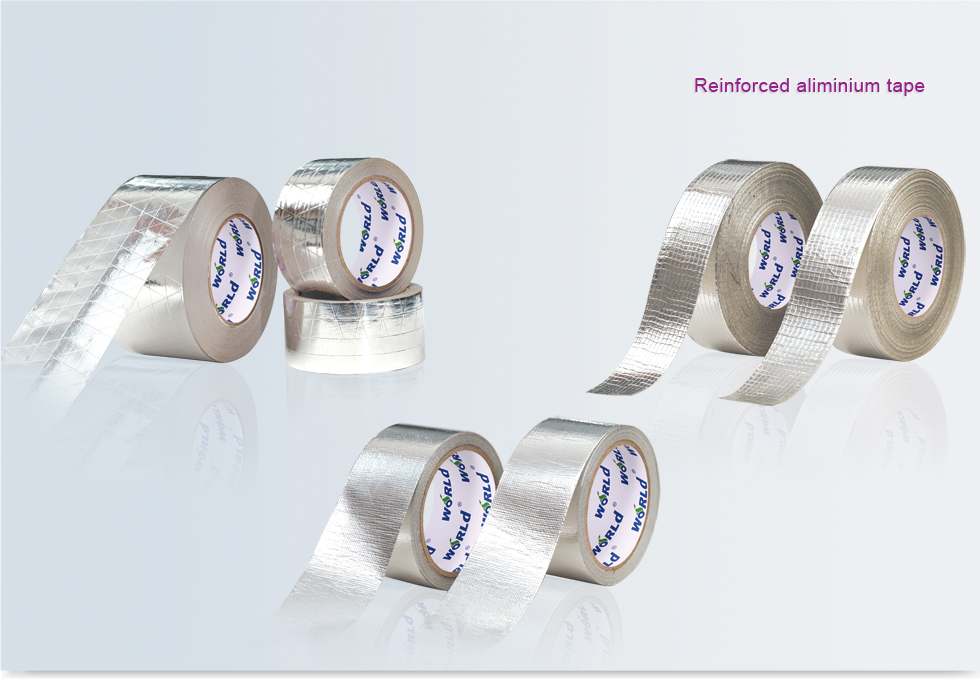

 WORLD® Reinforced aluminium foil tape
With fibre glass net reinforced
 aluminium foil, coated with high
quality acrylic glue.
 1. high tensile strength.
 2.shield, reflex heat.
 3.air-conditioning pipe jointing
& wrapping.
4.service temperature range
 from -20℃～+80℃
(-4℉～+176℉) |
200001 |
3-way scrim, aluminium
foil +fiberglass mesh +
kraft paper |
Utility grade FSK tape,
sealing joints and seams,
provide excellent
reflection of heat and
light. |
| 200002 |
2-way scrim,aluminium
foil +fiberglass mesh |
High grade foil with good
fiberglass mesh reinforced,
provide good tensile
strength in HVAC duct
work application. |
| 200003 |
2-way scrim,aluminium
foil +fiberglass mesh |
High grade foil with
excellent fiberglass mesh
reinforced,provide good
tensile strength in HVAC
duct work application. |
| |
 |
| Technical specification |
| Material |
Square grid reinforced aluminum foil |
|
| Glue |
Solvent based Acrylic glue with Flame Retardant |
|
| Foil thickness |
140Mic |
|
| Total thickness |
170Mic |
|
| Release film |
White PE-coated Silicone Release Paper |
|
| Release film thickness |
90Mic |
|
| PROPERTIES |
UNIT |
VALUE |
TEST METHOD |
| First adhesive (#11 Steel Ball) |
CM |
≤20 |
PSTC-6 |
| Persistent strength |
H.25mm |
≥ 10 |
PSTC-7 |
| 180°C Peeling strength |
N/25mm |
20 |
PSTC-1 |
| Tensile strength |
N/25mm |
80 |
PSTC-31 |
| Elongation |
% |
10 |
PSTC-31 |
| Water resistant |
/ |
Yes |
PSTC-34 |
| UV Resistant |
/ |
No |
|
| Fire resistant |
Class |
V-0 |
UL94 |
| Moisture resistant |
/ |
Yes |
ASTM D1000 |
| Application temperature |
°C |
0 ~ +40 |
|
| Temperature resistance |
°C |
-10 ~ +120 |
|
| Shelf life |
Month |
≥24 |
At approx. +20°C and 50% humidity |
Above data, base on standard products, for other sizes, pls send  e-mail : info@worldtape.com |
|
