Customer’s size available! for your favorite size, pls send us by  e-mail: info@worldtape.com |
|
| For quick emergency roofing repairs |
|
 |
| Descript ion |
Art. No. |
Foil |

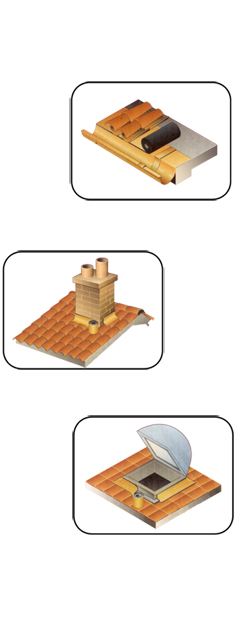

Application |

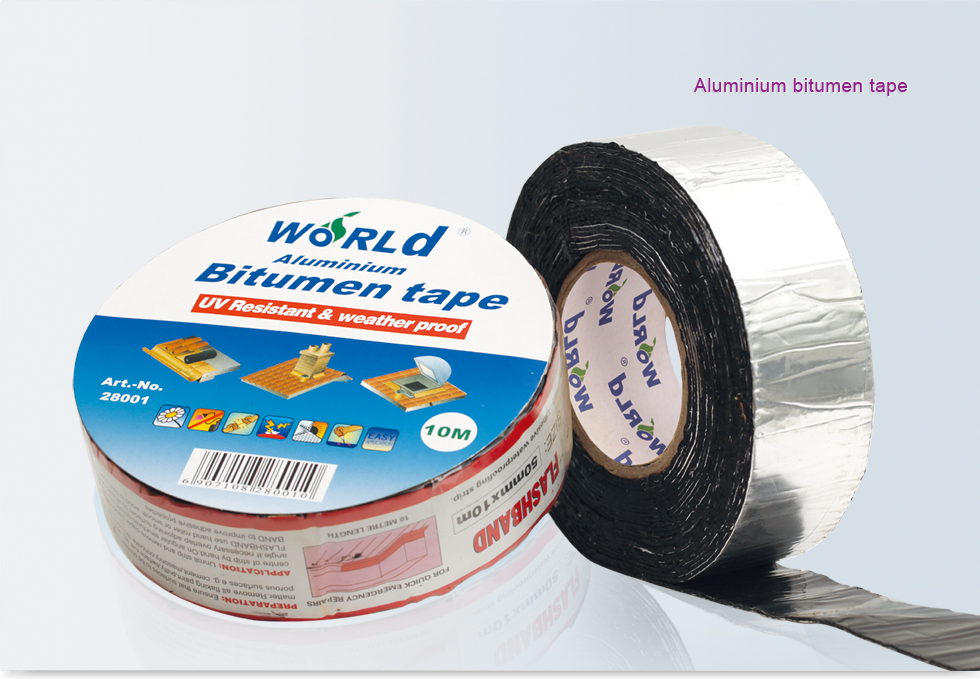

 WORLD® aluminium bitumen tape
Coated very good rubber
 resin and bitumen, apply best
sealing for roof and long life.
 1. high tensile strength.
 2. uv resistant
 3. life span of up to 15 years
4.self-adhesive
5. waterproofing strip
 6. seal leaks instantly. |
300010
300015
300020
|
1.0mm
1.5mm
2.0mm
|
50mm x 10m
100mm x10m
150mm x 10m
300mm x 10m
600mm x 10m
|
| | | | |
 |
| Technical specification |
| Material |
Aluminium Foil+PET |
|
| Glue |
Modified bitumen |
|
| Foil thickness |
50Mic |
|
| Total thickness |
1.5mm |
|
| Release film |
PE release film |
|
| Release film thickness |
70Mic |
|
| PROPERTIES |
UNIT |
VALUE |
TEST METHOD |
| Adhesion to primed concrete |
N/50mm |
≥ 250N |
ASTM D 1000 |
| Adhesion to Steel |
N/50mm |
≥ 250N |
ASTM D 1000 |
| Elongation % |
% |
≥1000 |
ASTM 412 |
| Tensile strength |
N/50mm |
≥300 |
|
| Temperature Resistance |
°C |
-25 ~ +90 |
|
| Permeance |
g/h.m2 |
≤0.003 |
ASTM 96B |
| Water absorption |
g/h.m2 |
0.23 |
ASTM D 5229 |
| Pliameance |
|
Passed |
ASTM D 146 |
| Resistance to hydrostatic head |
M |
≥45 |
|
| Shelf life |
Year |
≥10 |
|
| Exposure to fungi in soil for 16 weeks |
/ |
unaffected |
GSA-PBS 07115 |
| UV resistant |
|
Yes |
|
| Accelerated ageing |
Self adhesive flashing tape passed all requirements of the ICBO |
Above data, base on standard products, for other sizes, pls send  e-mail : info@worldtape.com |
|
